Serial Number: 20151
Registration Number: N223TV
This outstanding aircraft is based in Tampa, Florida and may be viewed by appointment.
| Plan: | Bombardier Smart Parts Plus |
| TTSN: | 4,063 hours |
| TLSN: | 2,489 landings |
Times/Landings as of 4 Feb 2026
| Plan: | Honeywell MSP Gold |
| Type: | Two Honeywell AS907-1-1A (HTF7000) |
| #1 (Left) | #2 (Right) | |
| Serial Number: | P118429 | P118428 |
| TTSN: | 4,063 hours | 4,063 hours |
| TCSN: | 2,501 cycles | 2,496 cycles |
Times/Cycles as of 4 Feb 2026
| Plan: | Honeywell MSP Gold |
| Type: | Honeywell 36-150[BD] |
| Serial Number: | P-260 |
| TTSN: | 3,828 hours |
Time as of 4 Feb 2026
12/24/36 MO & 400/1600/2400/4200 HR Tasks C/W October 2025 by Bombardier

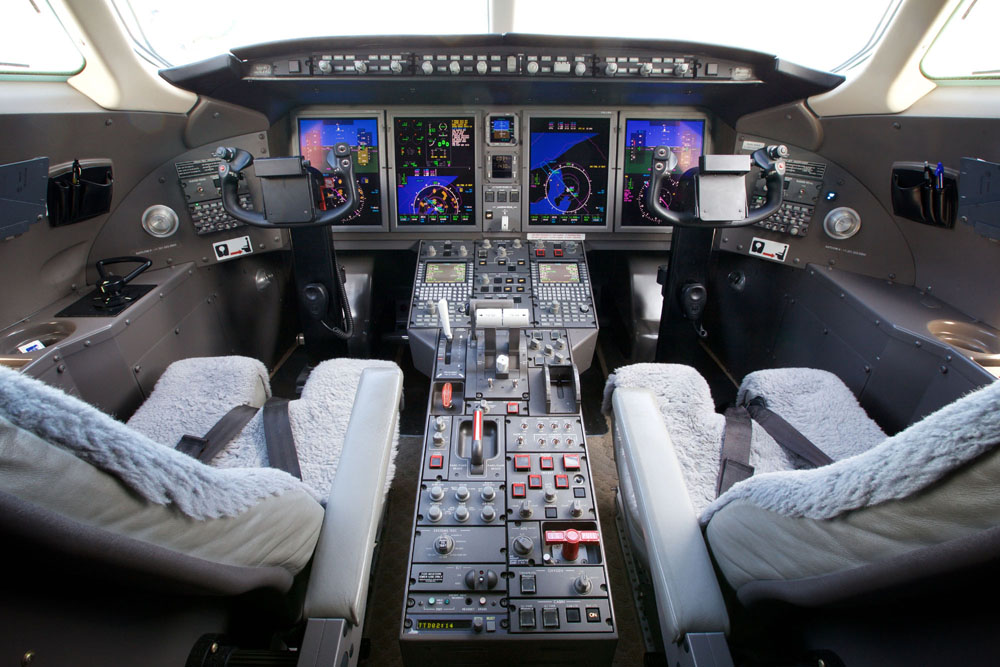

Collins Pro Line 21 Advanced
| EFIS: | Four Collins Adaptive Flight Displays with Synthetic Vision |
| FMS: | Dual Collins Flight Management Systems with WAAS/LPV |
| AHRS: | Dual Collins Attitude Heading Computers |
| NAV: | Dual Collins VHF Navigation Receivers with Dual ADF Receivers |
| VHF COM: | Triple Collins VHF Communication Transceivers |
| HF COM: | Dual Collins HF Communication Transceivers with SELCAL |
| SATCOM: | Iridium Satcom System |
| DATALINK: | Datalink System |
| DATA: | Gogo AVANCE L5 Wi-Fi |
| RADAR: | Collins MultiScan Weather Radar |
| WX: | Lightning Detection System (LDS) & Uplink Graphical Weather |
| RADALT: | Collins Radio Altimeter |
| XPNDR: | Dual Collins Transponders with ADS-B Out v2 |
| TAWS: | Collins TAS-5000 |
| ACAS: | Collins TTR-4000 (TCAS II) with Change 7.1 |
| CVR: | L3 Cockpit Voice Recorder |
| FDR: | L3 Flight Data Recorder |
| ELT: | Artex ELT with NAV Interface |
• QTA Carbon Graphite Engine Inlet Barrels STC ST04417AT
• Engine Water Wash System SB AS907-72-9005
• Pulse Landing Lights, Wing Strobe Light, Service Panel Lighting
Passenger Seating: Nine (9) Approved for Taxi, Takeoff & Landing, Including Belted Lavatory

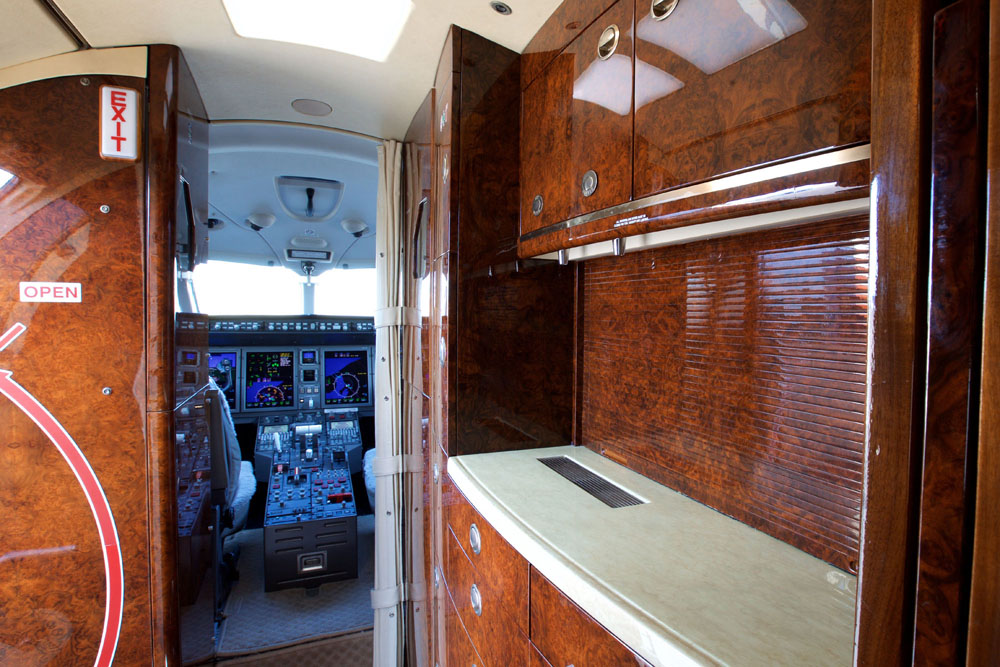

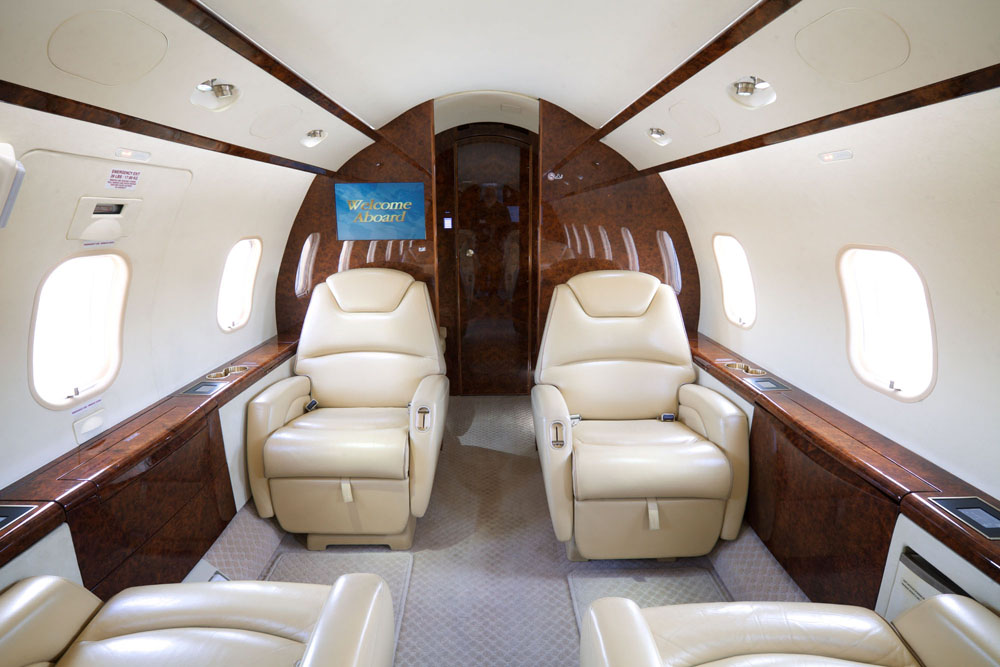

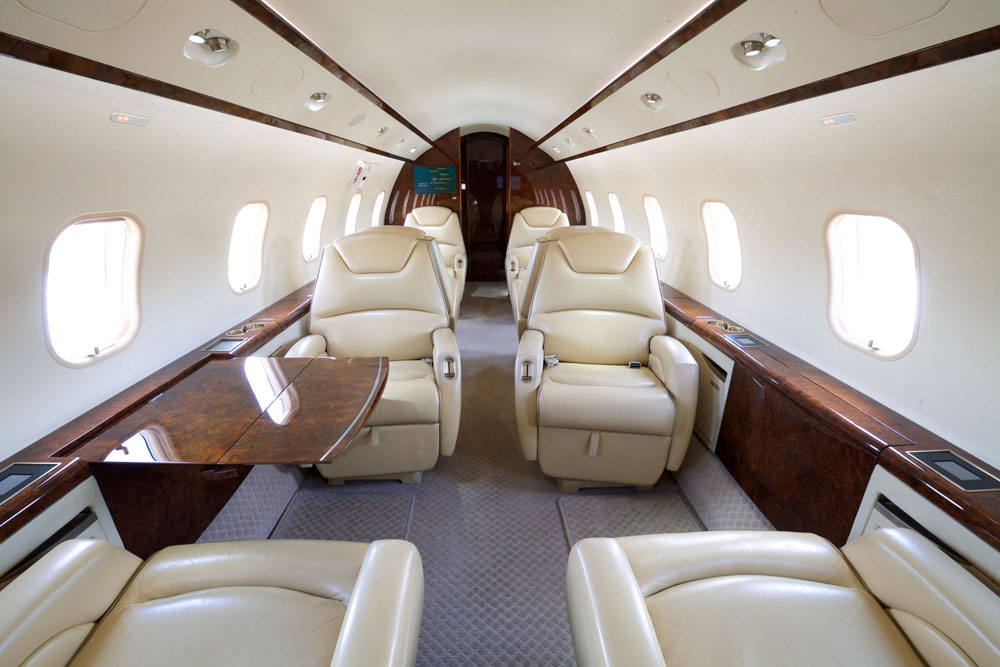

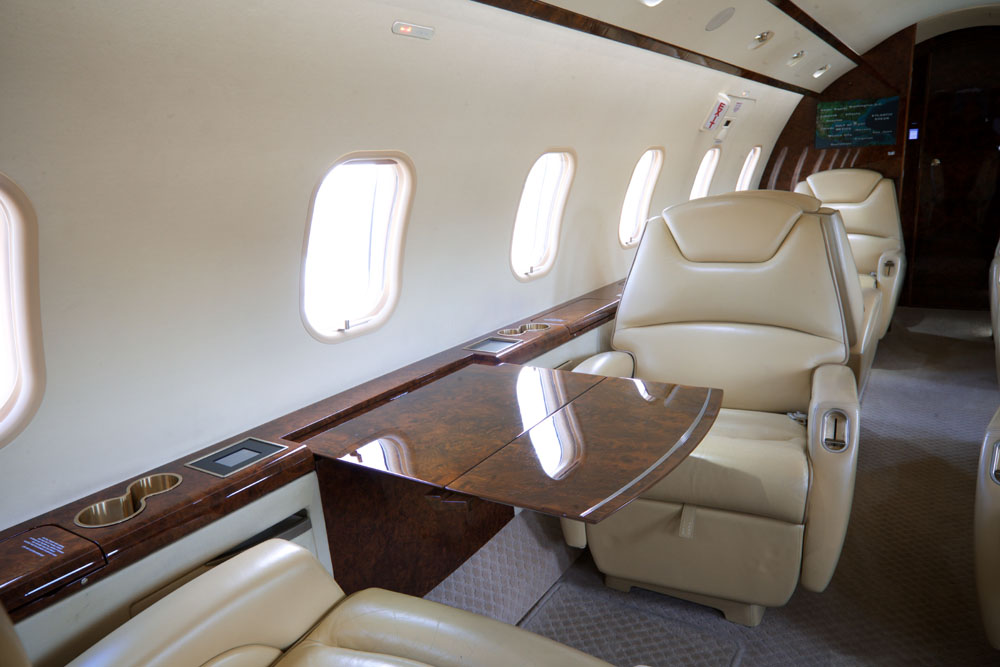

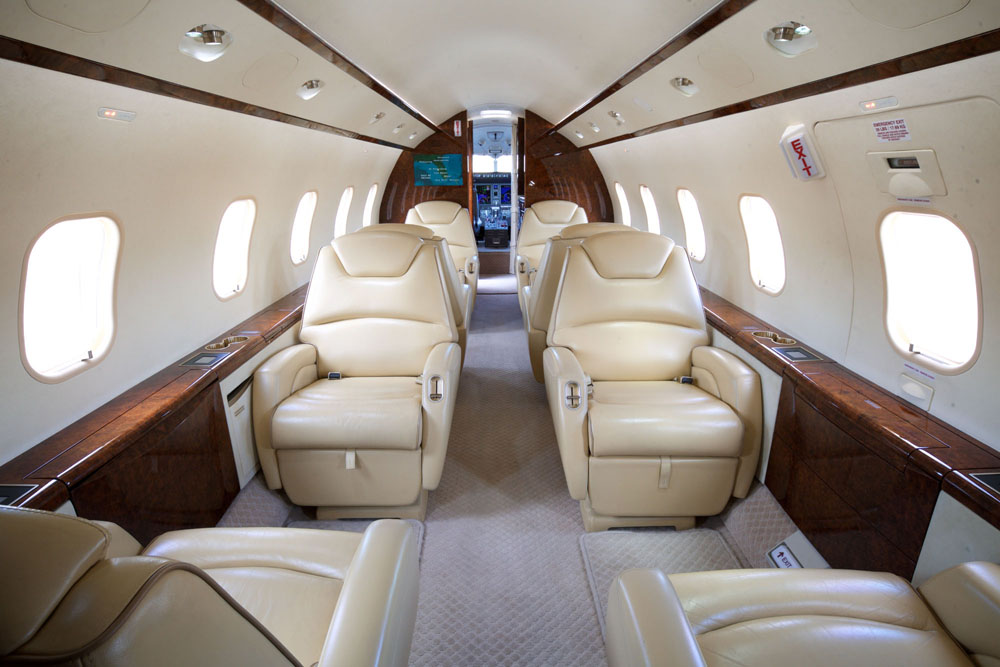

This Challenger 300 features forward and aft cabin 4-place clubs and a belted lavatory seat. There is a forward right-hand galley opposite a wardrobe and an aft in-flight accessible baggage compartment. The forward and aft cabin partitions have sliding doors. The cockpit and cabin feature 115VAC power outlets.
A Lufthansa Technik nice Cabin Management System is complemented by dual 20” LCD bulkhead monitors, and DVD Player, and Airshow 410.
Wi-Fi internet is available through a Gogo AVANCE L5 data system, and satellite voice calling is available via an Iridium Satcom system.
The interior features Walnut Burl gloss veneer, Satin Almond Gold decorative plating, and faux Travertino Classico countertops. The flight deck through lavatory features sand-colored diamond patterned carpet, installed new in November 2024. The cabin headliner/PSU and window panels are finished with Chablis Ultraleather, and the dado panels are covered in Linen leather. The cabin seats are finished with Sand leather with Nugget contrasting seat cushion welting.

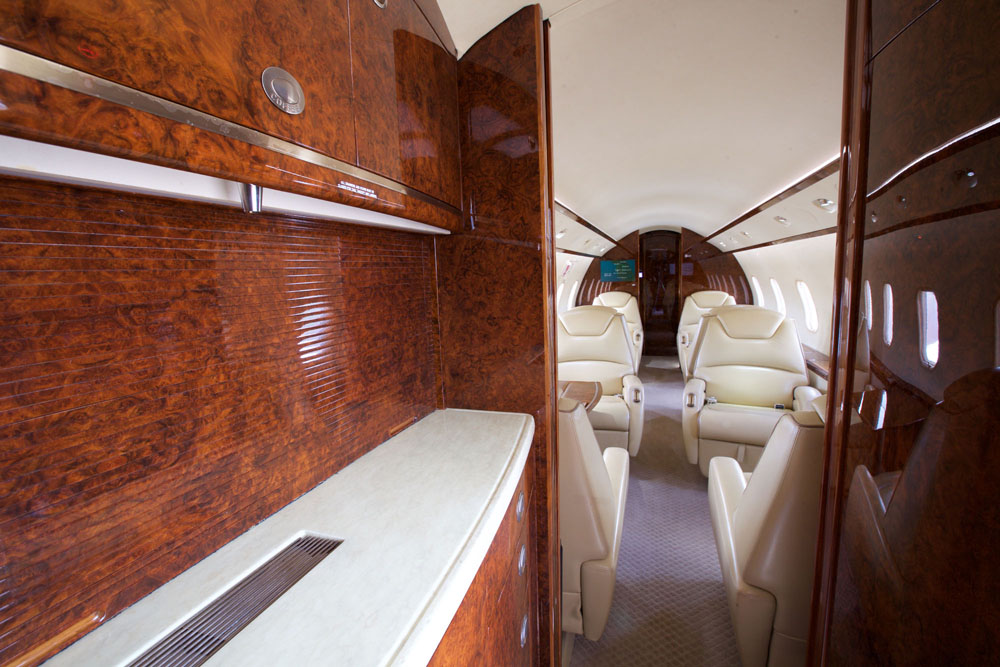

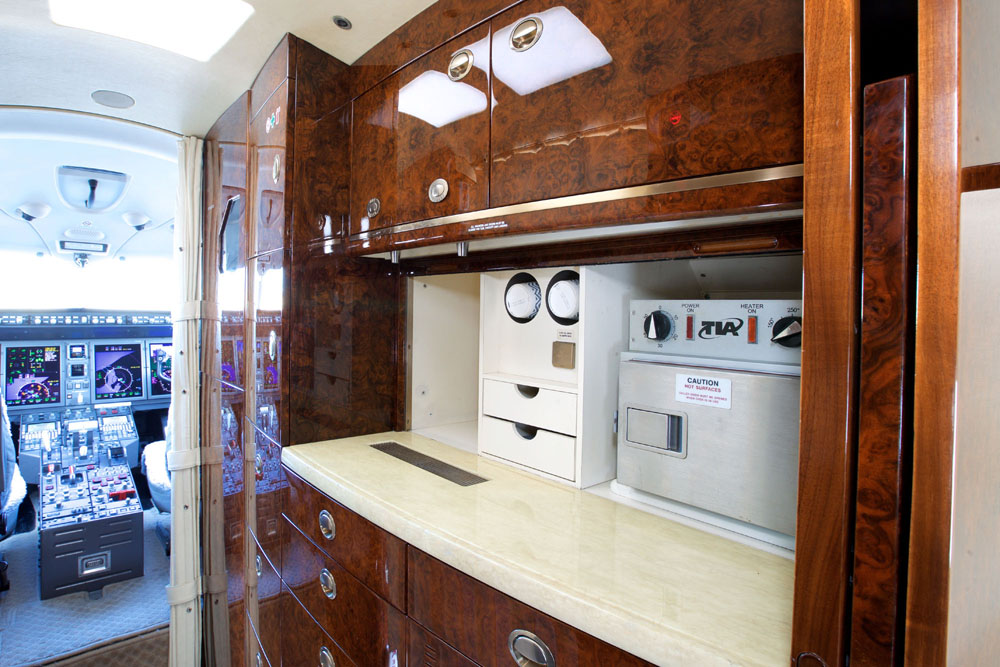

Galley equipment includes a TIA oven, dual hot liquid containers, ice drawer, pullout in-flight seat, and multiple miscellaneous storage drawers and compartments.

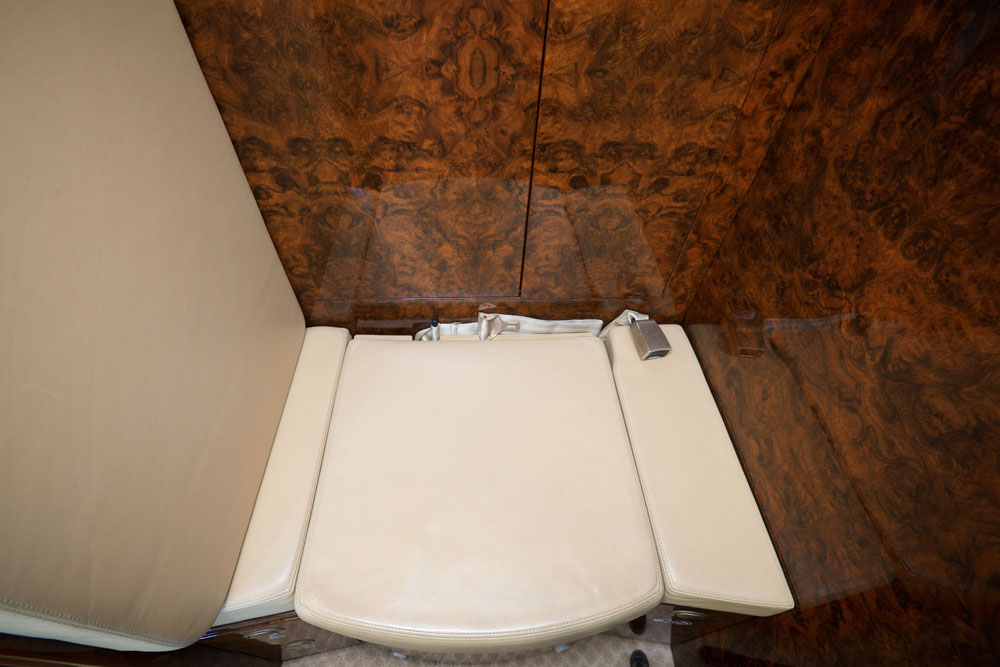

The aft lavatory is equipped with an externally serviced toilet opposite a vanity with sink.
The in-flight accessible baggage compartment, aft of the lavatory, features the “Increased Baggage Capacity” completion option and a hang-up bar.

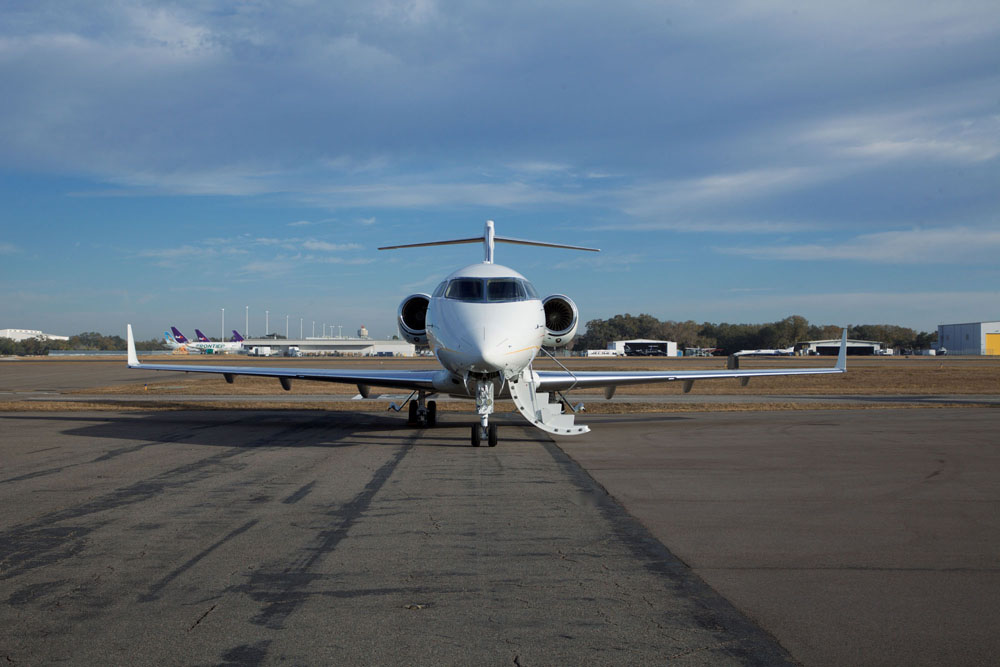

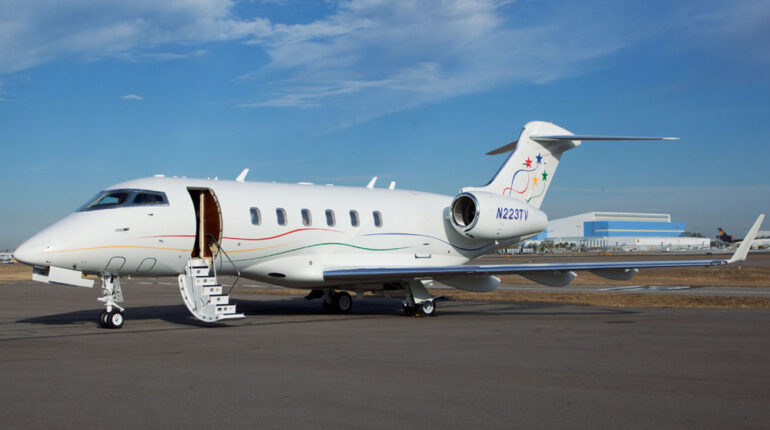

Repainted in 2013, the exterior is overall Matterhorn White with Blue, Green, Yellow, and Red stripes, including tail stripes with stars.
