Serial Number: 72130
Registration Number: N registered
This outstanding aircraft is based in Denver, Colorado and may be viewed by appointment.
| TTSN: | 449 Hours |
| TLSN: | 257 Landings |
Times/Landings as of 25 Feb 2026
| Plan: | Pratt & Whitney ESP PurePower |
| Type: | Two (2) Pratt & Whitney Canada PW814GA |
| #1 (Left) | #2 (Right) | |
| Serial Number: | PCE-GA0570 | PCE-GA0577 |
| TTSN: | 449 hours | 449 hours |
| TCSN: | 257 cycles | 257 cycles |
Times/Cycles as of 25 Feb 2026
| Plan: | Honeywell MSP Gold NLS |
| Type: | Honeywell HGT400[G] |
| Serial Number: | P-362 |
| TTSN: | 380 hours |
Time as of 25 Feb 2026
Currently at Gulfstream, Brunswick to accomplish the following maintenance: 12/24 Month Inspections plus 750 Hour Tasks
Gulfstream Symmetry Flight Deck with Active Control Sidesticks
| AFGS: | Honeywell Dual Automatic Flight Guidance System with Fly-By-Wire Active Control Sidesticks and Autothrottle System |
| EFIS: | Four (4) Honeywell LCD Display Units, Dual Standby Flight Displays, Five (5) Multi-Function Touch Screen Controllers, Situational Awareness Package (3D Airport Moving Map, ADS-B In, SVS Enhanced Symbology) |
| HUD/EVS: | HUD II Head-up Guidance System and EVS II Enhanced Vision System |
| SVS: | SmartView Synthetic Vision System with Enhanced Symbology |
| FMS: | Triple Next Gen Flight Management System with LPV |
| AHRS: | Dual Attitude Heading Reference Units |
| VHF COM: | Triple VHF Communication Transceivers with Triple Audio Control Panels |
| HF COM: | Dual HF Communication Systems with SELCAL |
| SATCOM: | Gogo Business Aviation Iridium Satellite Telephone System and Honeywell Inmarsat Satellite Communications System |
| DATA: | Honeywell JetWave Ka-band Wi-Fi with SDR |
| DATALINK: | FANS 1/A+ CPDLC & ATN B1 PM-CPDLC |
| GPS: | Dual SBAS/WAAS GPS Modules |
| LRNAV: | Triple Honeywell Laseref VI Micro Inertial Reference Units |
| NAV: | Dual Navigation Modules with Single ADF Module |
| WX: | Honeywell 3D Weather Radar System with Predictive Windshear (PWS) |
| RADALT: | Dual Digital Radio Altimeters |
| TAWS: | Dual Honeywell EGPWS Modules with Runway Awareness & Advisory System (RAAS) |
| ACAS: | TCAS II with Change 7.1 |
| XPNDR: | Dual Mode S ADS-B Out Transponders |
| FDR: | L3 Flight Data Recorder |
| CVR: | L3 Cockpit Voice Recorder with RIPS |
| ELT: | Artex ELT 4000 Transmitter |
• Service Bulletin PW800-72-80193 – Replacement/Modification of Mid-Turbine Frame Assembly Rear Inner and Outer Piston Rings incorporated on both engines during engine build
• Service Bulletin PW800-72-80230 – Replacement/Modification of High Pressure Compressor Front Hub and Tie-Shaft incorporated on both engines during engine build
• In Service March 22, 2024 – Components Warranty Valid from the Delivery Time of 5 years
• Primary and Secondary Structure Warranty Valid from the Delivery Time of 20 years or 20,000 hours, whichever is shorter
Passenger Seating Capacity: Fourteen (14)
Jump Seat: Yes – Crew Only
Configuration

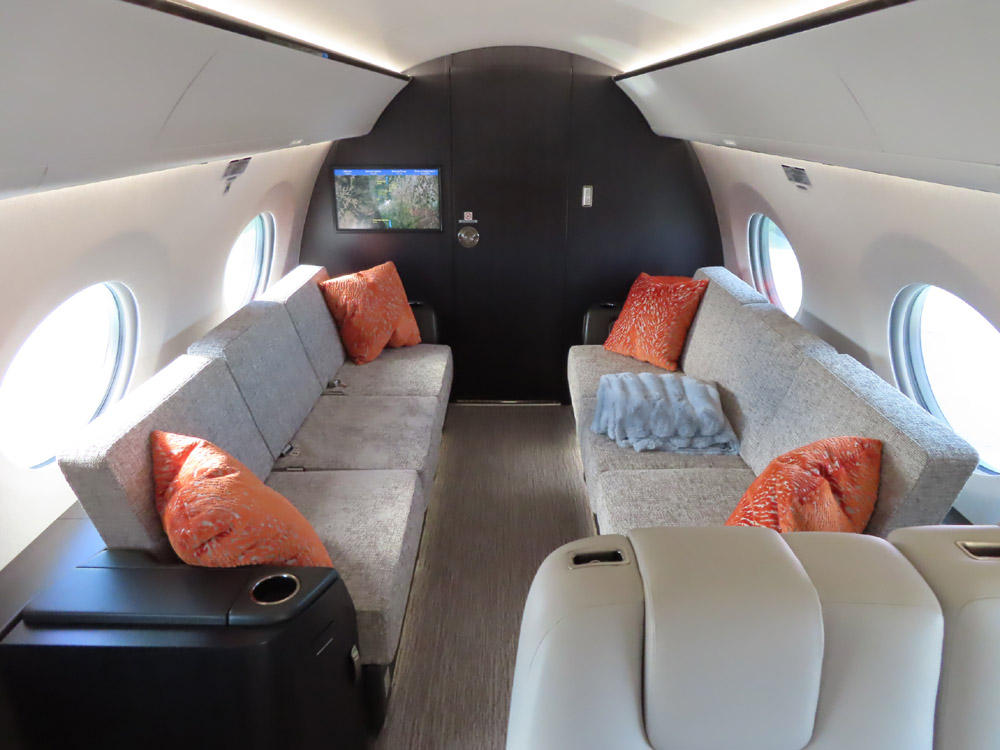

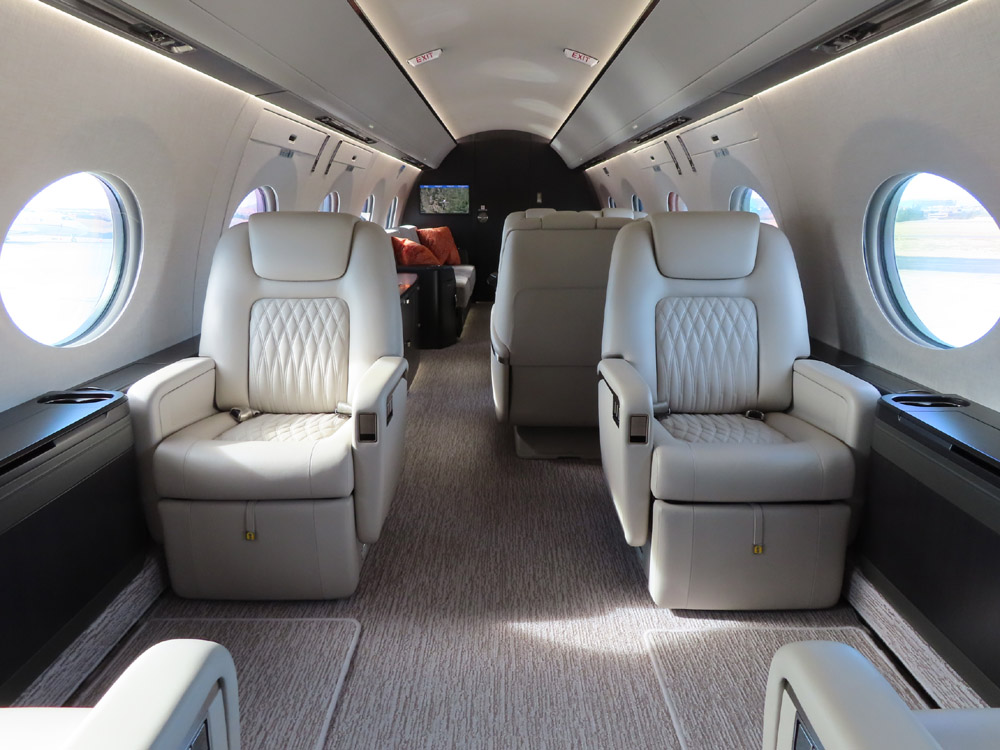

This Gulfstream G500 features a 14-passenger forward galley configuration, forward and aft lavatories, and an in-flight accessible baggage compartment. The cabin consists of a forward 4-place club, a mid-cabin 4-place conference group opposite a credenza, and dual aft cabin 3-place divans. The forward cabin features a bulkhead with electrically operated pocket door.
The main cabin 27” wide single seats feature leg rests, base cushion tracking, and berthing capability (limited by surrounding structures), and the 80” divans have manual berthing capability. There are 115V/60Hz universal outlets and USB charging ports throughout the cabin, and the main cabin features electrically operated window shades with diffused and black-out functions.
Gulfstream’s Cabin Management System is complemented by Gulfstream’s Audio/Video Distribution System supplying HD cabin video. Equipment includes a forward cabin bulkhead 24” Widescreen HD Monitor, a credenza flip-up 32” Widescreen HD monitor, an aft cabin bulkhead 24” Widescreen HD Monitor, a three-way divided Cabin Speaker System, HDMI jacks, USB charging ports, touchscreen control panels, CabinView Flight Information System with satellite feed, and an External Camera System. The credenza features a media compartment containing two (2) HDMI ports, two (2) 60Hz outlets, and three (3) Ethernet ports.
A Gogo Business Aviation Iridium Satellite Telephone System and a Honeywell Inmarsat Satcom System are interfaced to provide satellite voice calling. Wi-Fi internet is accessible via Honeywell JetWave Ka-band high speed data. The Satcom Direct Router (SDR) is interfaced to the GCMS.
The interior features “Comp Dark Line” matte veneer, “High Gloss Pewter” decorative hardware plating, and “Rain Cloud” Corian countertops. Scott Group “Corduroy Loop W/Silk” carpet is installed from the entryway through the aft lavatory. The cabin headliner/PSU is covered in “Smoke” Ultraleather, the upper sidewalls are finished in “Jasper, Nuage” cotton blend fabric, and the lower sidewalls are covered in “Blackhearth” leather. The cabin seats are finished in “Smoke” leather with quilted seat inserts. The divan cushions are covered in “Hepworth-Driftwood” fabric.

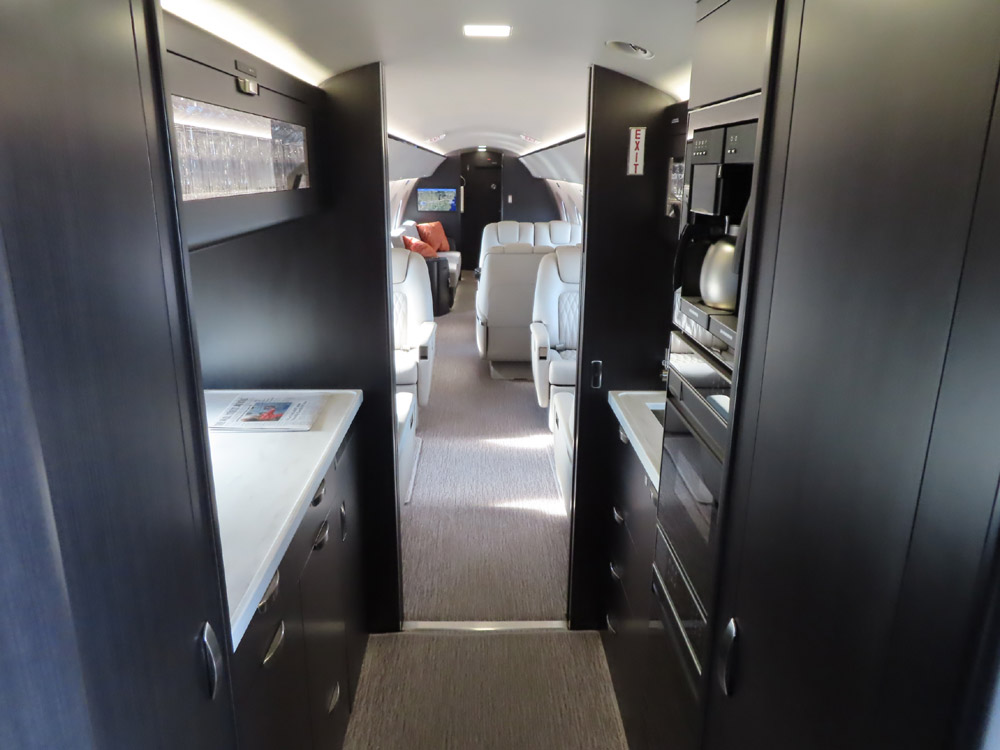

The galley features a stainless-steel trimmed appliance stack consisting of a coffee maker, hot water kettle, a microwave, and a convection oven. There are also two countertops, a sink with faucet, refrigerator, ice drawer, storage drawers with drawer-activated lighting, and multiple drawers and storage compartments.

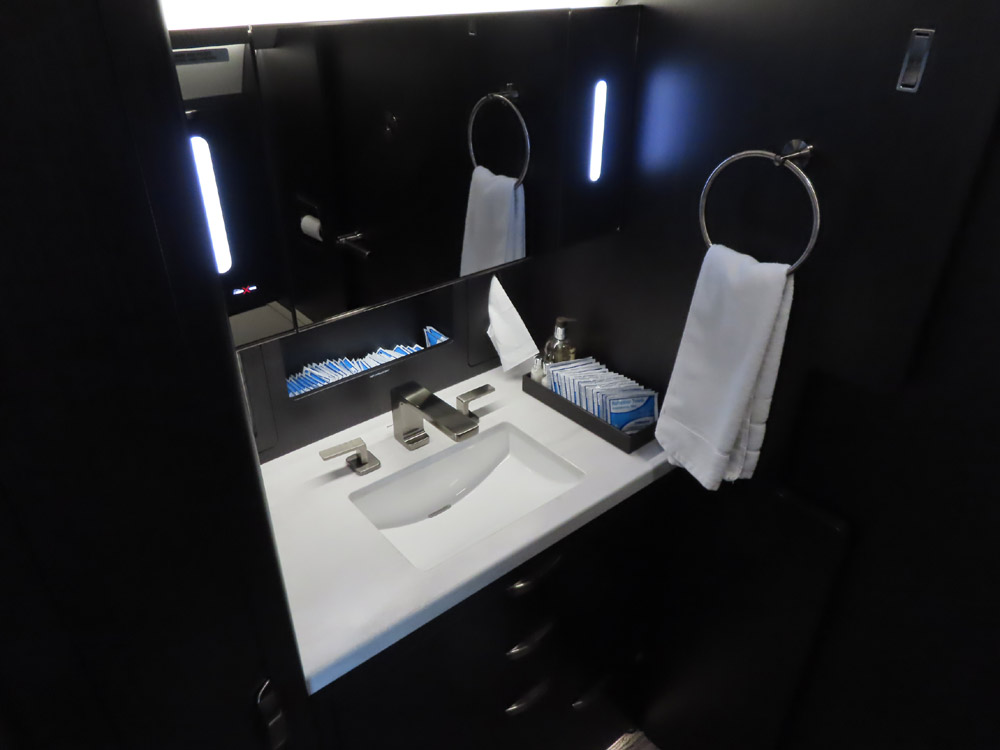

Both lavatories feature a vacuum flushing toilet and vanity with sink and faucet.

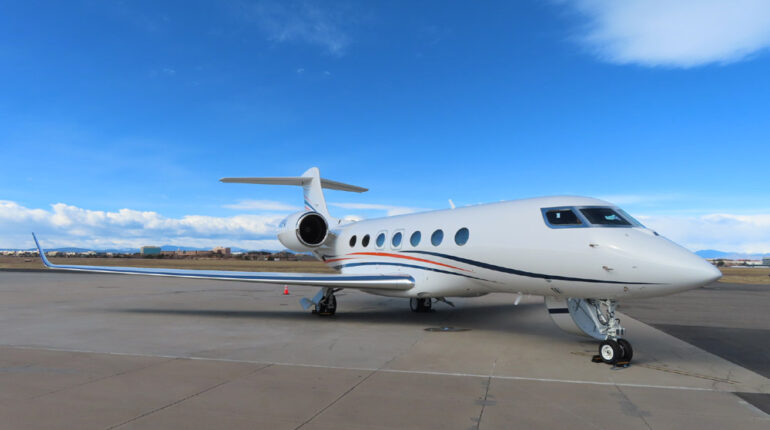

The exterior is painted Matterhorn White with Pantone 289C (Blue) and Traffic Orange stripes.
