Aircraft Highlights
- Excellent U.S. Pedigree
- Collins Pro Line Fusion Avionics with Software v3.6.1
- Heads-Up Display (HUD II), Enhanced Vision System (EVS)

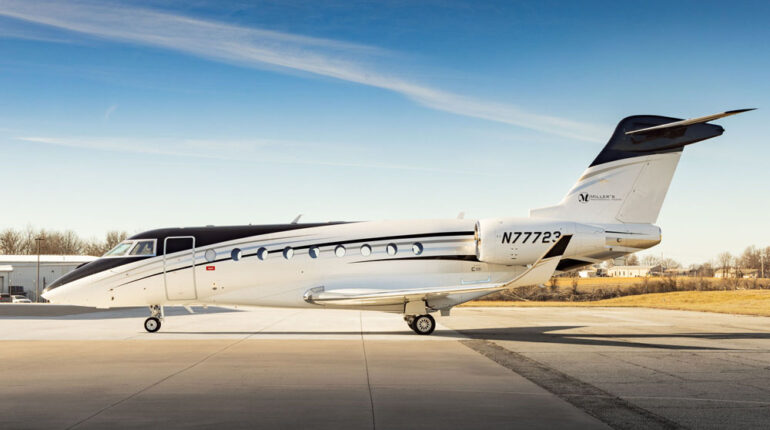

2022 Gulfstream G280
Serial Number: 2247
Registration Number: N77723
Aircraft Location
This outstanding aircraft is based in Pittsburg, KS and may be viewed by appointment.
Airframe
| TTSN: | 919 hours |
| TLSN: | 862 landings |
Times/Landings as of 14 Jan 2026
Engines
| Plan: | Honeywell MSP Gold with Nacelle Essential Gold Coverage |
| Type: | Honeywell AS907-2-1G (HTF7250G) |
| #1 (Left) | #2 (Right) | |
| Serial Number: | P130617 | P130618 |
| TTSN: | 941 hours | 941 hours |
| TCSN: | 877 cycles | 877 cycles |
Times/Cycles as of 14 Jan 2026
APU
| Plan: | Honeywell MSP Gold |
| Type: | Honeywell 36-150[IAI] |
| Serial Number: | P-356 |
| TTSN: | 702 hours |
Time as of 14 Jan 2026
Maintenance & Inspections
12/36 Month Tasks Accomplished by Gulfstream 11/12/2025
WARRANTIES
• Gulfstream 5 Year/3,000 Flight Hours Components Warranty valid until December 2027 or 3,000 flight hours, whichever is shorter
• Gulfstream 10 Year/10,000 Hours Primary and Secondary Structure Warranty valid until December 2032 or 10,000 flight hours, whichever is shorter
Avionics
Collins Pro Line Fusion with Software v3.6.1
| FGCS: | Collins Automatic Flight Guidance Control System with Autothrottles & Auto Brakes |
| EFIS: | Three (3) Collins AMLCDs with Single Integrated Flight Information System (IFIS) |
| HUD/EVS: | Collins Heads-Up Display (HUD II) / Enhanced Vision System (EVS) |
| SVS: | Collins Synthetic Vision System (SVS) |
| FMS: | Dual Collins Flight Management Systems with WAAS/SBAS GPS |
| AHRS: | Dual Honeywell Attitude Heading Reference Systems |
| VHF COM: | Triple Collins VHF Transceivers |
| HF COM: | Dual Collins HF Comm Systems with SELCAL |
| SATCOM: | Iridium Satellite Communications System |
| DATALINK: | Dual Datalink Systems with FANS 1/A+ CPDLC & Link 2000+ (ATN-B1) CPDLC |
| DATA: | Gogo AVANCE L5 Broadband Wi-Fi |
| NAV: | Dual Collins Navigation Receivers and Single ADF Receiver |
| RADAR: | Collins MultiScan Weather Radar with Predictive Windshear and Vertical Weather |
| SXM: | XM Satellite Weather |
| RADALT: | Collins ALT-4000+ Radio Altimeter (5G Filtering) |
| TAWS: | Collins TPM-6000 TAWS |
| ACAS: | Collins TSS-4100 |
| XPNDR: | Dual Collins Transponders with ADS-B Out |
| CVR/FDR: | Dual Combination FDR/CVR Units |
Additional Information
• Talon LED Taxi & Landing Lights
• Air Ionization System
• Jump Seat Intercom Panel
Interior
Passenger Seating Capacity: Ten (10) Approved for TT&L
Cockpit Jump Seat: Yes

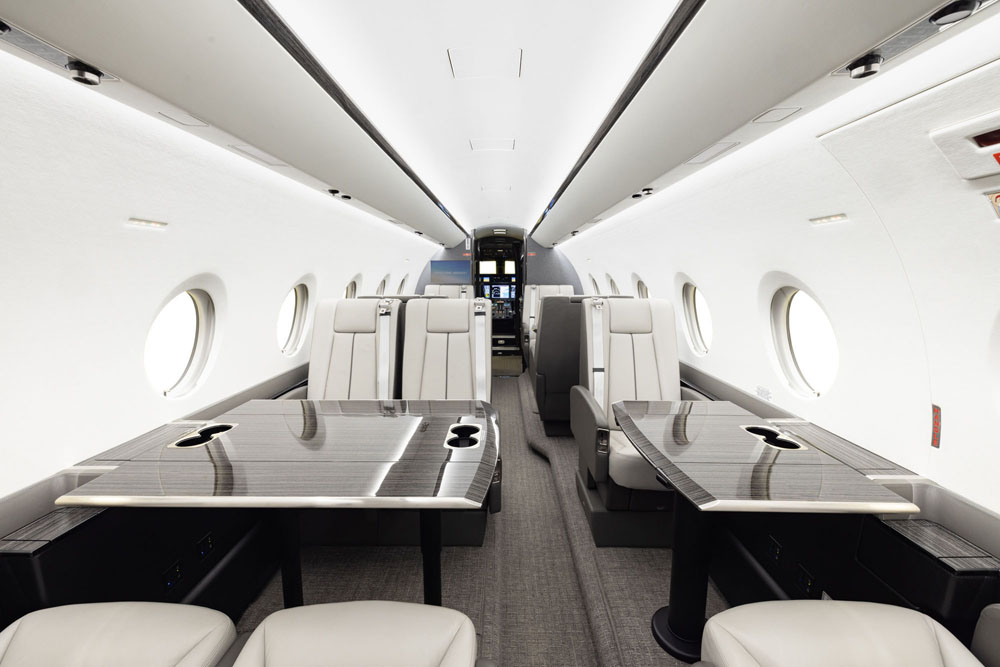

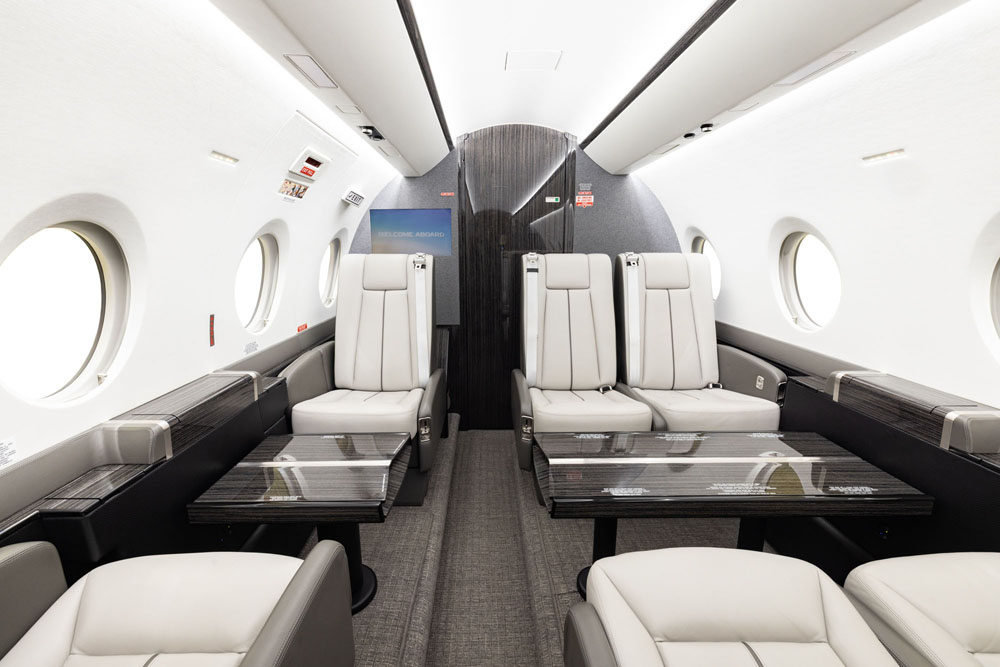

Featuring a ten (10) passenger interior, this G280 has a forward galley, aft lavatory, and an in-flight accessible baggage compartment. The cabin seating configuration consists of a forward 4-place club with an aft cabin left-hand 4-place conference group opposite a 2-place club. The forward cabin has a manually operated pocket door, and the main cabin features 115V/60Hz universal outlets and USB charging ports.
This G280 features the Gulfstream Cabin Management System (GCMS) and Audio/Video Distribution System (AVDS) providing audio and high-definition (HD) video. Equipment includes a galley flip-down touchscreen panel, dual slot Blu-ray player with media server, cabin HDMI input jack, forward and aft bulkhead 22” LCD monitors, and Gulfstream CabinView Passenger Flight Information System.
An Iridium satellite communications system provides satellite voice calling, and a Gogo AVANCE L5 broadband system provides Wi-Fi Internet.
The interior features dark grey gloss veneer, silver-colored decorative hardware plating, and “Everest” Corian countertops. Kalogridis medium grey carpet is installed in the main cabin, and the entryway/galley and lavatory areas feature dark grey vinyl flooring. The cabin window panels are finished in “Linen-Polar” Ultraleather, and the dado panels are covered in black textured leather. The two-tone cabin seats are finished in “UL Dark Light Grey” leather with “Moonlight Grey” recessed welt, arm rests, and lower shrouds.

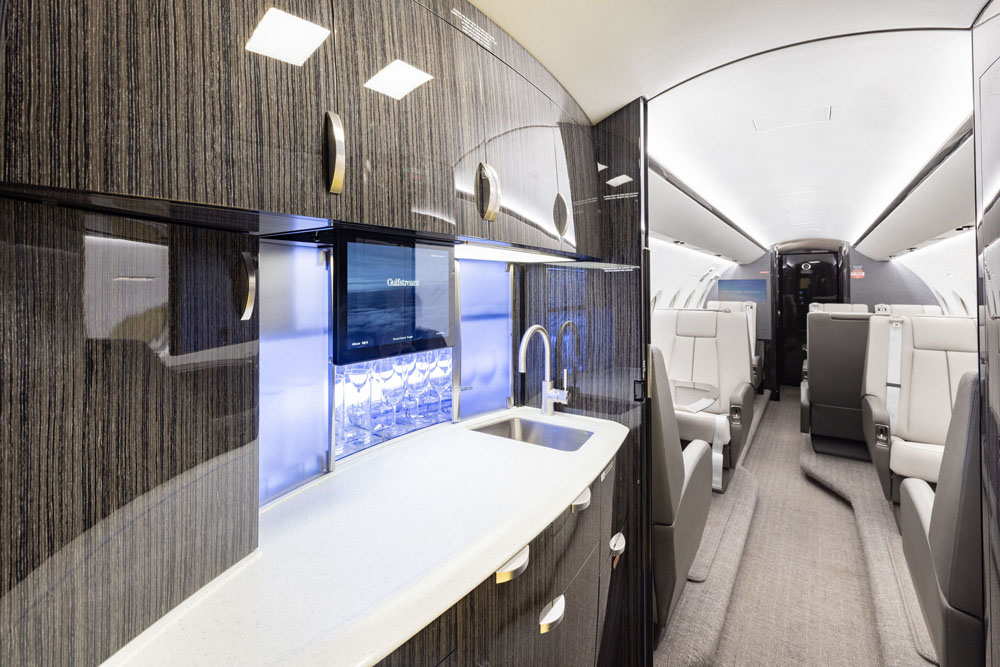

The galley features a countertop with pull-out work surface, sink with faucet, ice drawer with removable divider, coffee maker, Enflite convection oven, cold storage compartment, and multiple miscellaneous storage compartments.

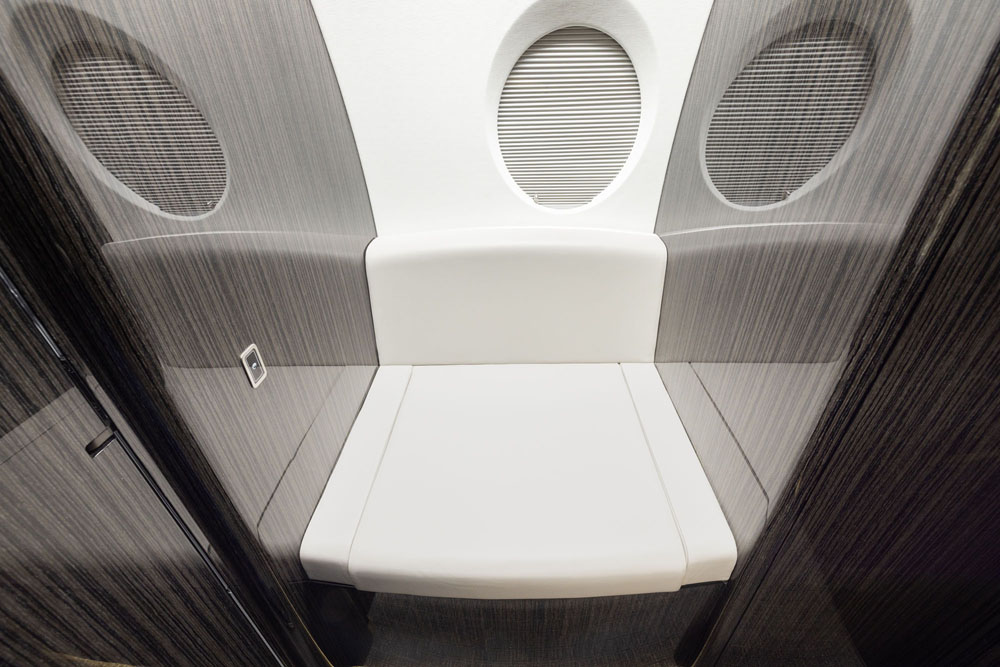

The lavatory is equipped with a vacuum toilet opposite a vanity with sink and faucet.

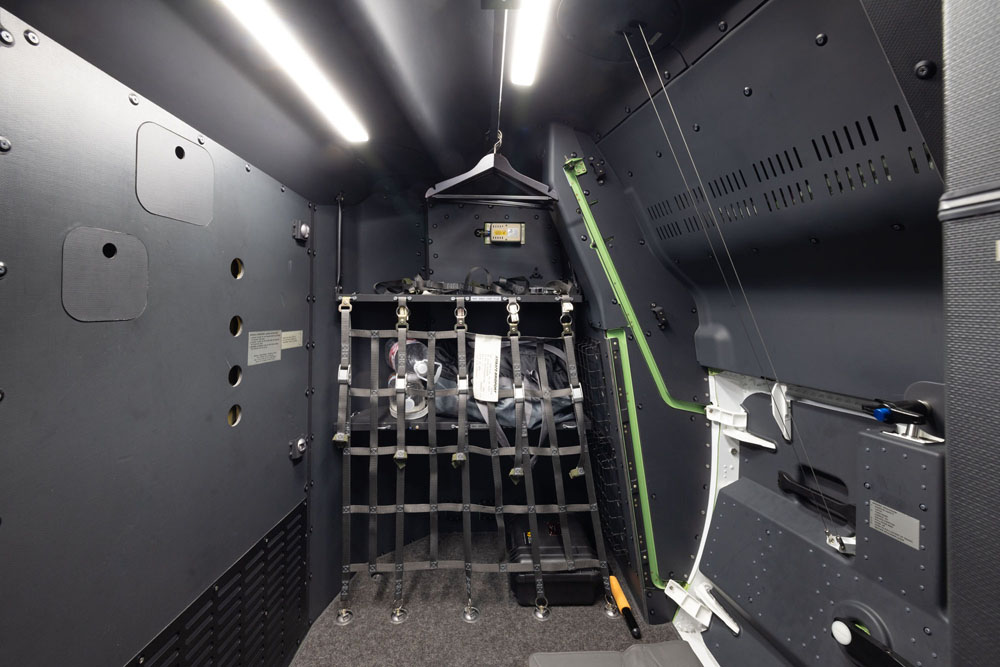

An in-flight accessible baggage compartment is located behind the aft lavatory.

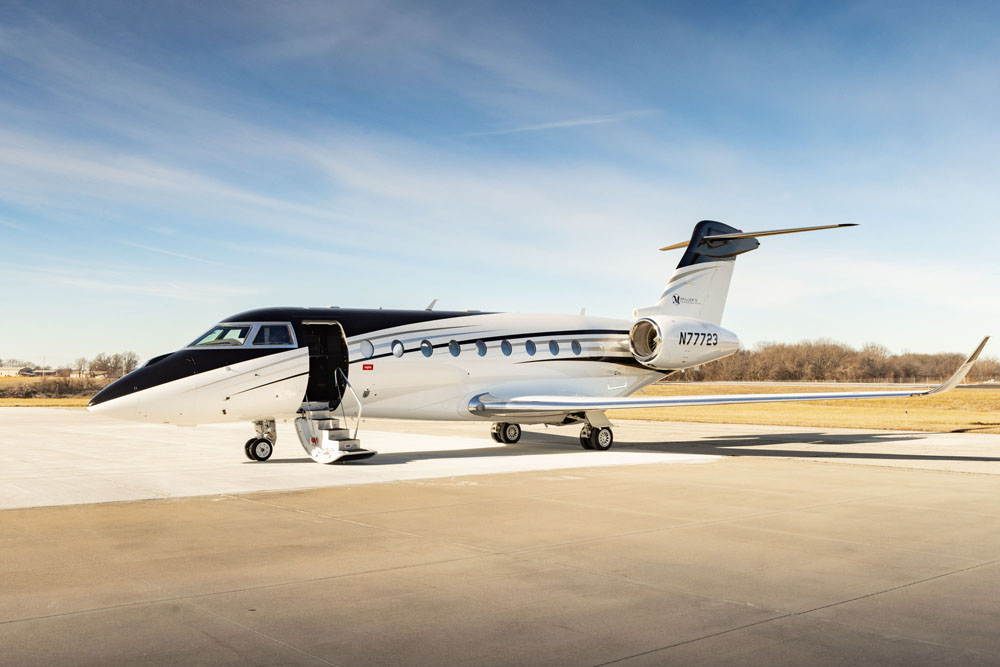

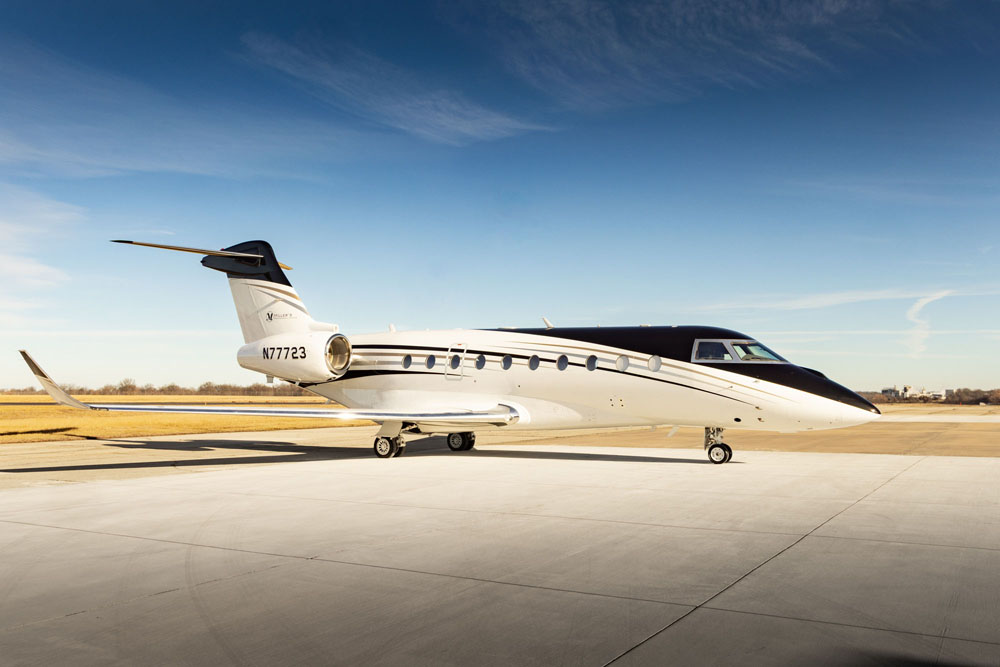

Exterior Colors
The exterior is painted overall Matterhorn White with DS Frost, Titanium, and Black Velvet stripes.
